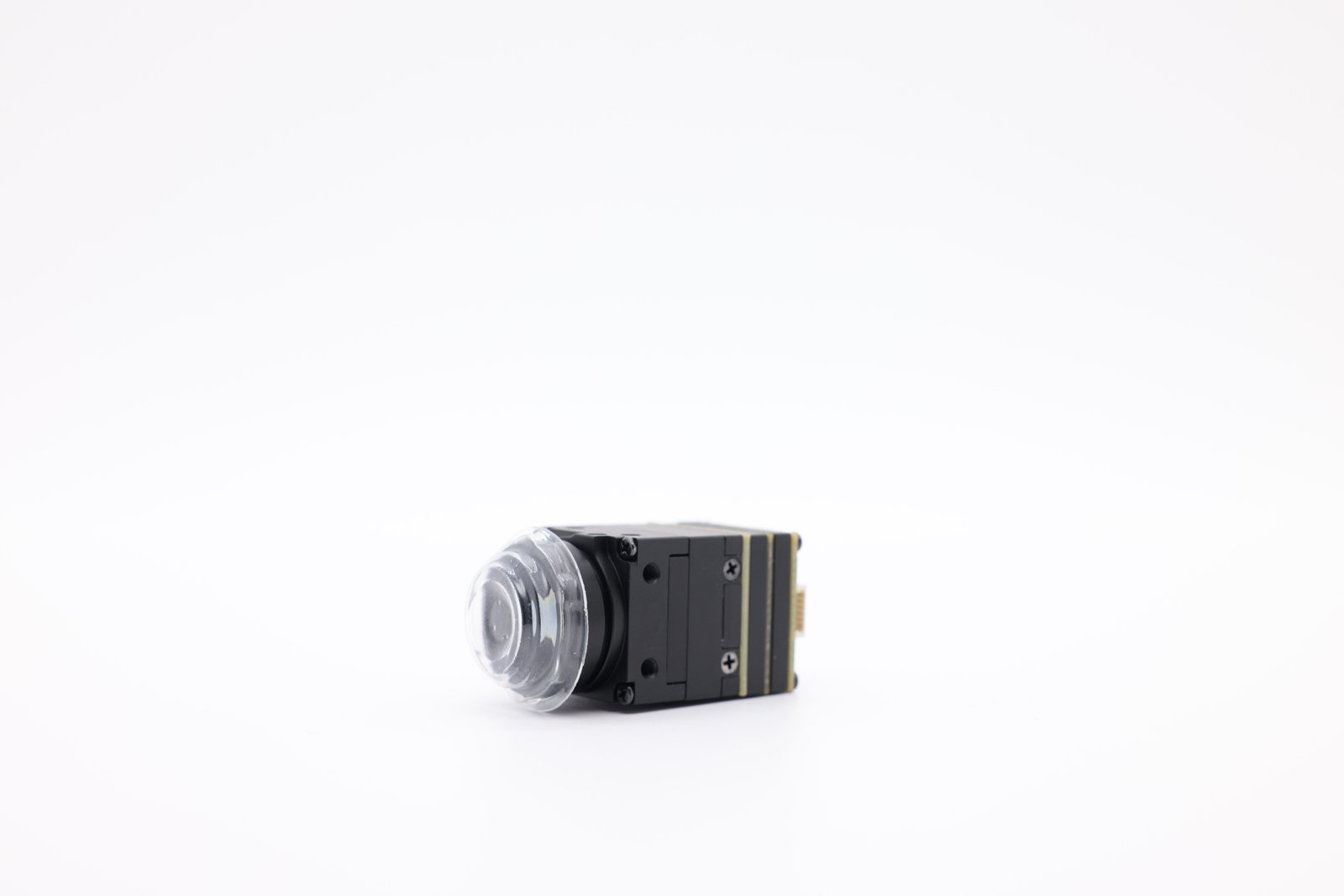

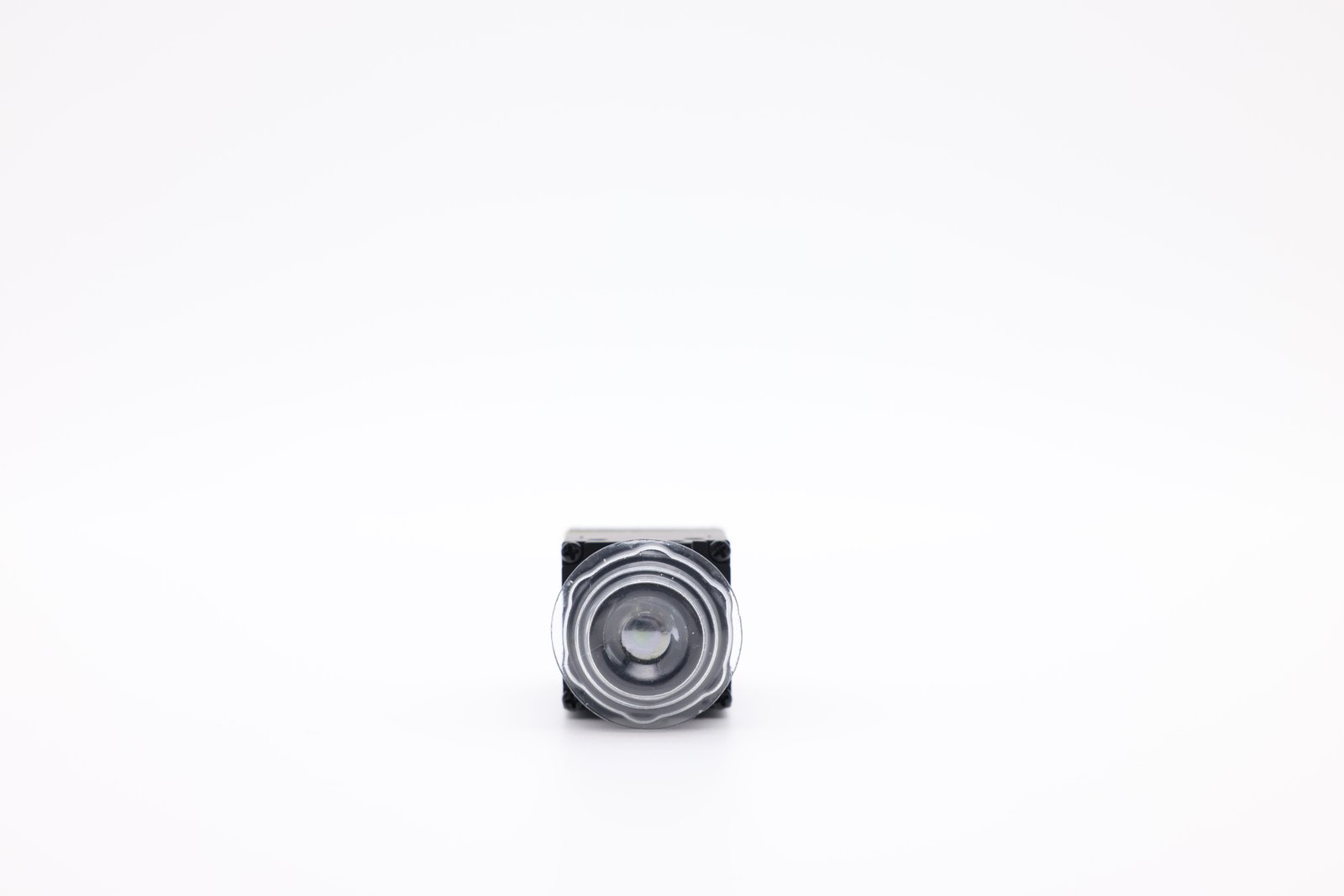

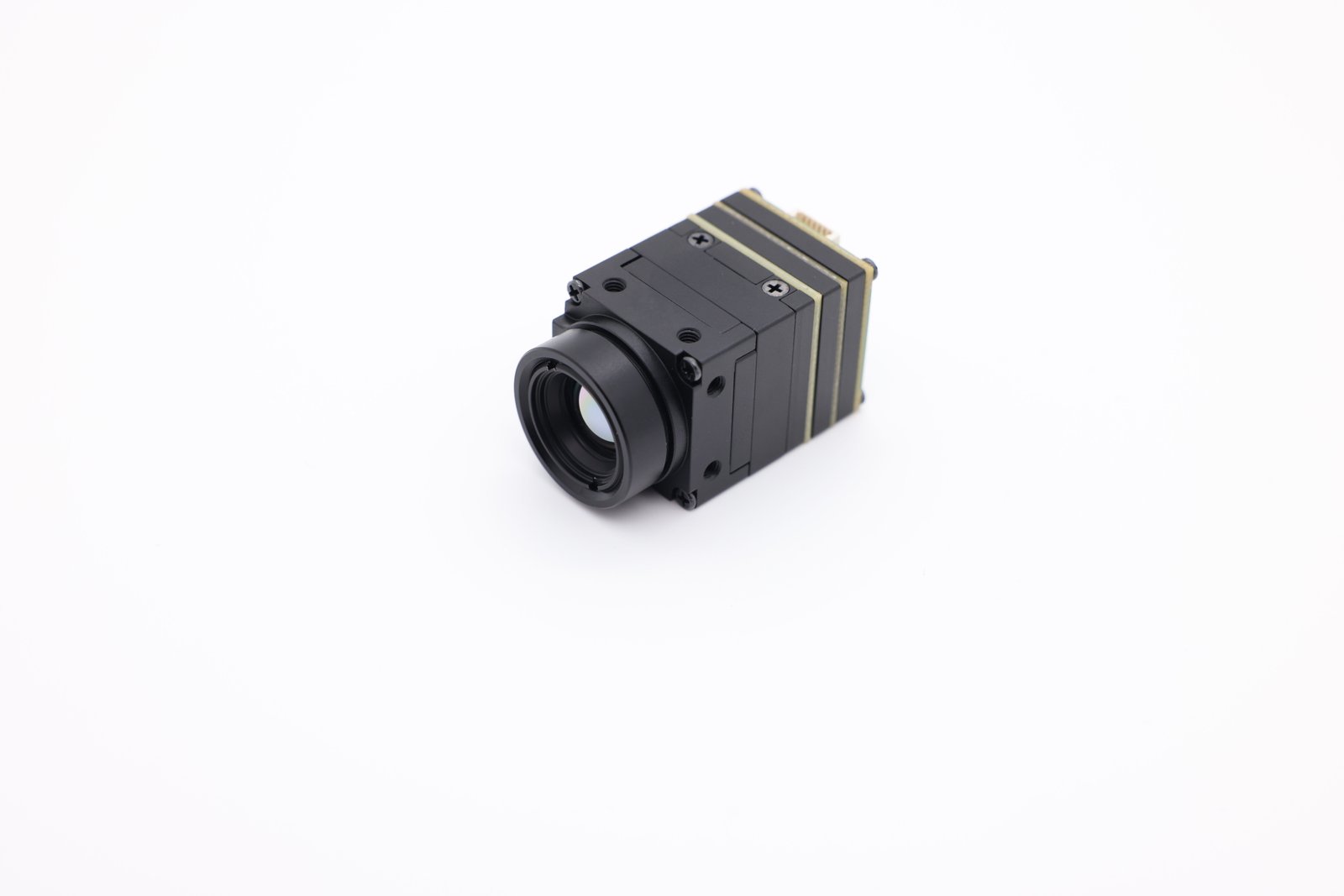

RC-M301A/RC-M601A

Thermal Camera Module CVBS

Product Overview

This infrared camera uses an uncooled vanadium oxide infrared focal plane detector, which is suitable for long-wave infrared(8-14μm) radiation imaging. The camera is compact and lightweight, with low power consumption. It can be used with different infrared lenses and supports mainstream CVBS and USB video output interfaces. It is widely used in infrared thermal imaging image acquisition in industrial collection, observation equipment, drones and other fields.

... ... ...

Specification

Lens options
Optical lens
4mm/6mm/9.1mm/13mm/19mm/25mm/35mm/50mm/75mm optional or customized
FOV (HxV)
9.1mm    48°+1.5°x38.4°+1°
FNO
1.1
Category Specification
Detector
Sensor Type VOx (Vanadium Oxide)
Image Resolution 640x512 / 384x288
Pixel Size 12μm
Spectral Band 8-14μm
NETD (Noise Equivalent Temperature Difference) ≤40mK
Frame Rate 50Hz
Image Processing
Non-uniform Correction Supported
Image Detail Enhancement Supported
Edge Enhancement Supported
Image Flip Supported
AGC Mode Direct Histogram
Startup Time ≤5s
Function List
Electronic Zoom x1-x8, step 0.1
Reticule Off, Vertical, Horizontal, Center
Brightness Adjustment Supported
Contrast Adjustment Supported

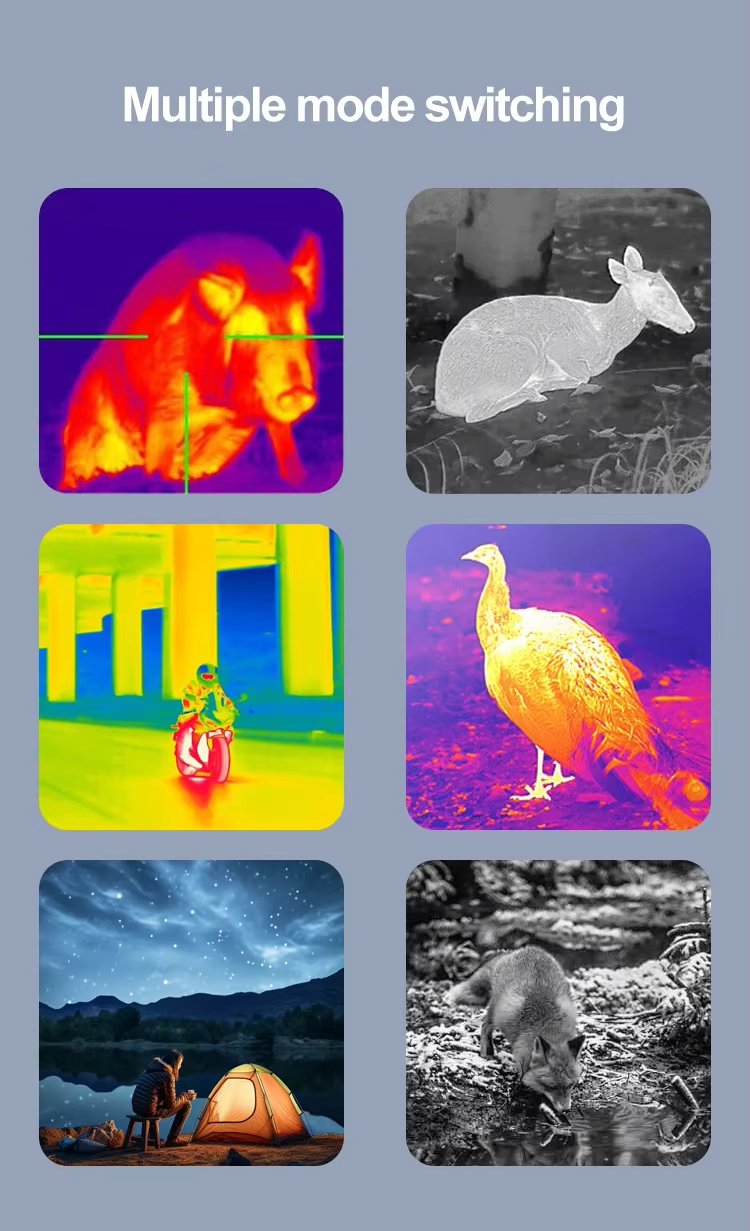

Pseudo-color Modes White Hot, Black Hot, Rainbow, Green, Red Hot, Iron Red
Thermal Image Correction Supported
Anti-exposure Supported
Crosshair Division Hide/Display/Move
Image Calibration Mode Manual/Automatic (With Shutter)/Background
Category Specification
Power Supply
Voltage Input 4.5-18V
Power Consumption ≤1W (CVBS) / ≤1.3W (USB UVC)

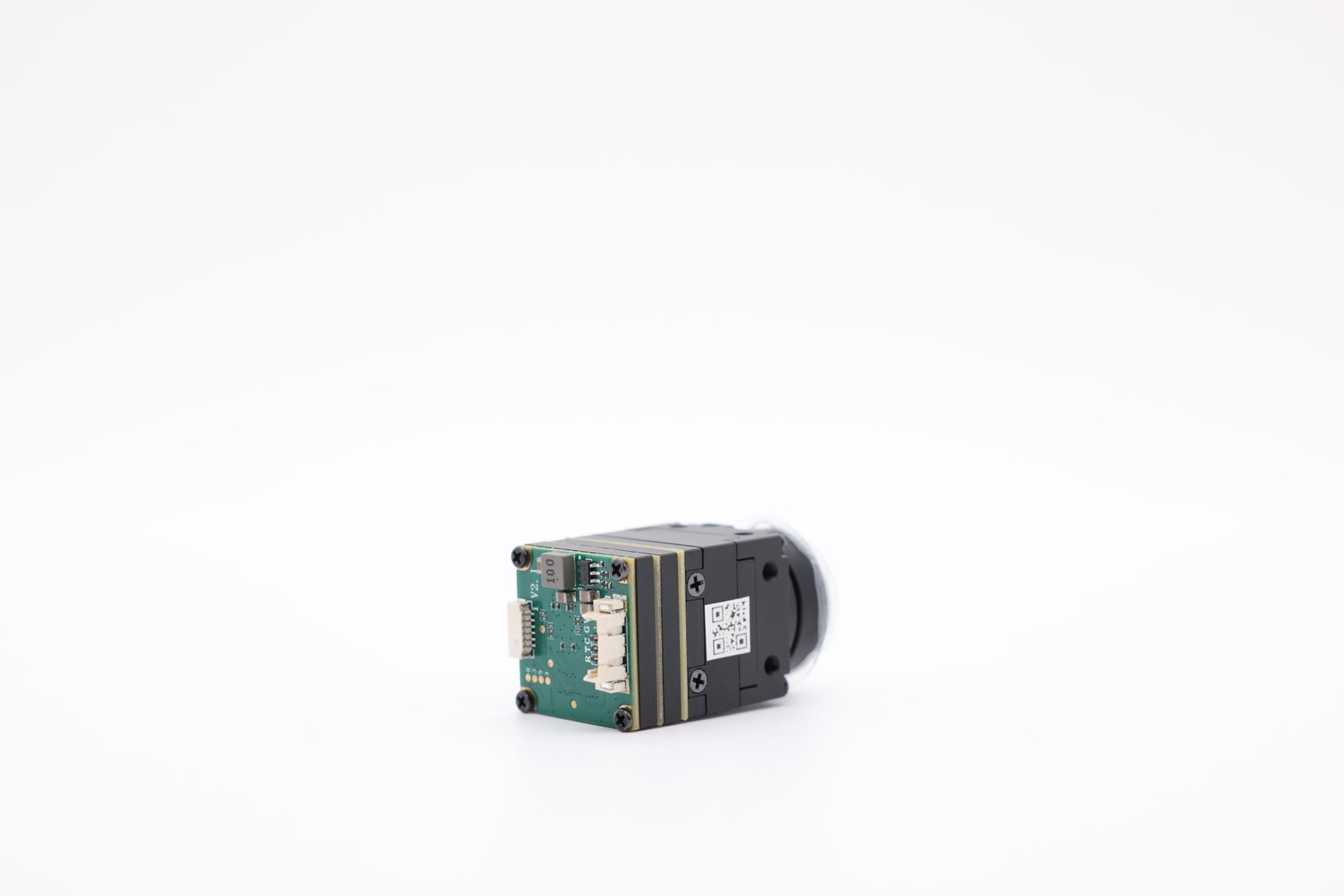

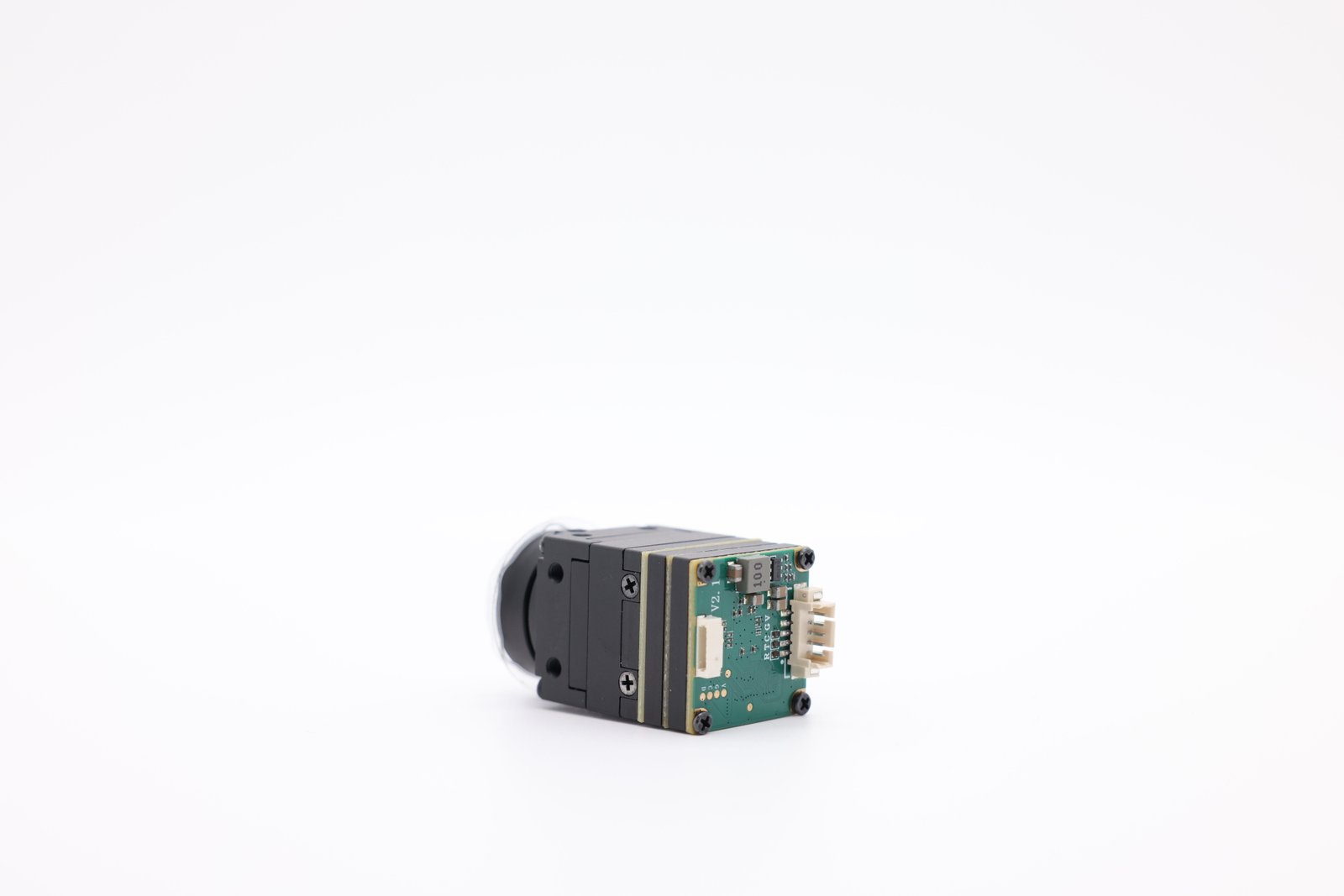

Interfaces
Video Output CVBS / USB 2.0
Control Interface UART 3.3V TTL
Output Resolution 720x576 (CVBS) / Native Resolution (USB)
Environmental Parameters
Operating Temperature -40°C to 60°C
Storage Temperature -50°C to 70°C
Humidity Resistance ≤90% RH
Vibration Resistance Sinusoidal Vibration, 10m/s², 3 Axes
Shock Resistance Half-sine Wave, 15g/11ms, 3 Axes, 6 Directions
Physical Structure Parameters
Weight ≤30g

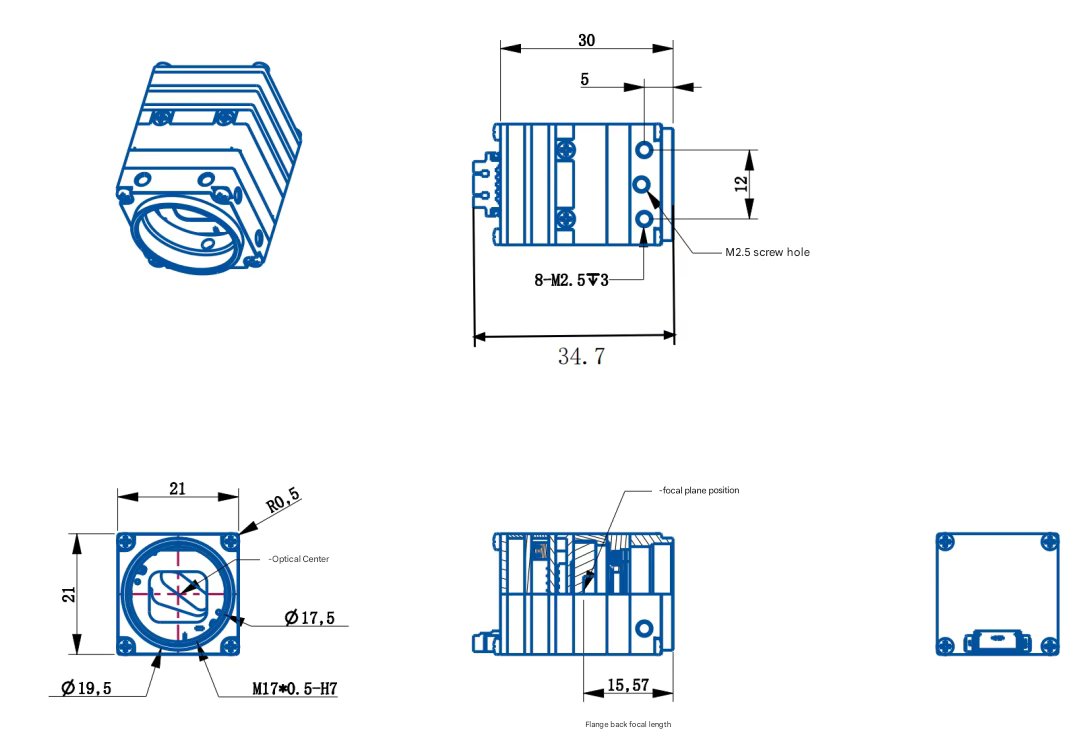

Dimensions (excluding lens) 21mm x 21mm x 34.7mm
